Back Button Watch 0.001" 196B1, Starrett
Pickup at local or home
Home deliveries throughout the country.

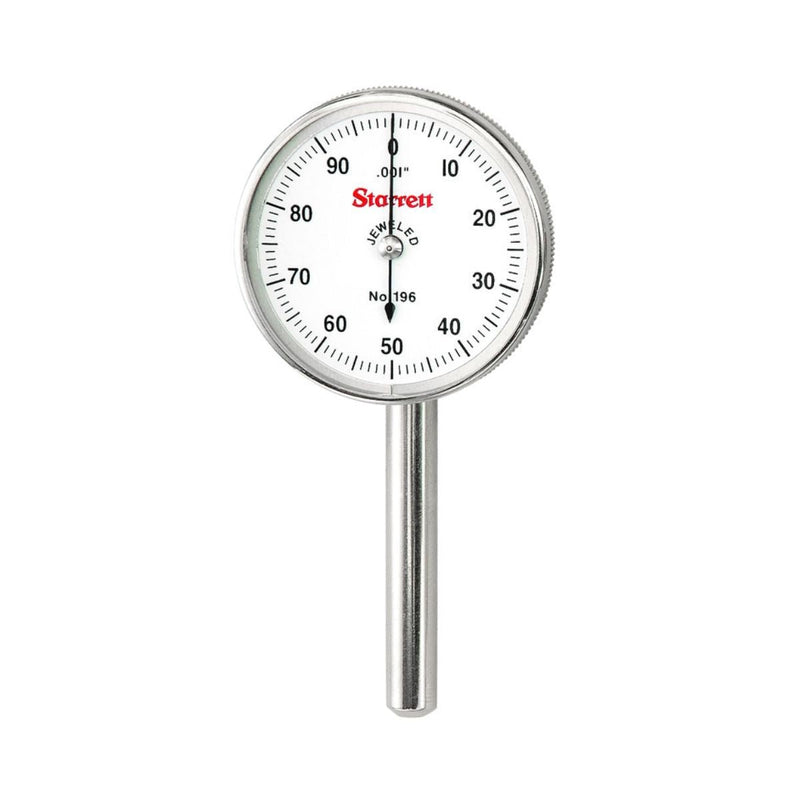

The Starrett 196 Universal Back Plunger Dial Indicator features 0.001" and 0.02 mm graduations to easily handle most jobs. The stem diameter is 1/4" (6.3 mm).
Antimagnetic models are also available: (inch reading) 196A6Z and 196B6. For complete use, the operator first chooses the proper contact from the three hardened contact points that come with each model.
The contact must then be brought against the piece with enough pressure to give the hand a complete revolution. Set the hand to zero by rotating the dial with the knurled bezel. This provides a complete rotation of the hand both to the right and to the left of zero, showing an increase or decrease in work and the amount of that variation. 0-100 with 3 contact points and adapter only
This provides a complete rotation of the hand both left and right from zero, showing a rise or fall in work and the amount of that variation.
Characteristics
- One of the most versatile indicators available.
- Accurate and reliable.
- Easy to operate
- Robust, with few moving parts.
- Smooth in operation.
- For complete use, the operator first chooses the proper contact from the three hardened contact points that come with each model.
- Shank diameter is 1/4" (6.3 mm)
- Indicator with 3 contact points and adapter only
SPECIFICATIONS
| Global model | 196B1 |
| Range | 7.87" ( 200mm ) |
| Graduations (in) | 0.001" |
| Dial reading | 0-100 |
| Accessories |
Indicator with 3 contact points and adapter only |
| Starrett Model | 50699 |
PACKAGE SPECIFICATIONS
|
Unit Package Item Quantity |
1 |
| Unit Package Weight (lbs) | 0.22lbs |
| Unit package weight (kg) | 0.09979032 kg |
| Unit Package Dimensions (in) | 3.74" x 2.56" x 1.57" |
| Unit package dimensions (mm) | 94,996 x 65,024 x 39,878 mm |
