M50-M200 0.01MM Inside Micrometer Set, Starrett
Pickup at local or home
Home deliveries throughout the country.
Starrett 124M Solid Rod Inside Micrometer Sets are the most popular inside micrometers due to their light weight, ease of use and range.

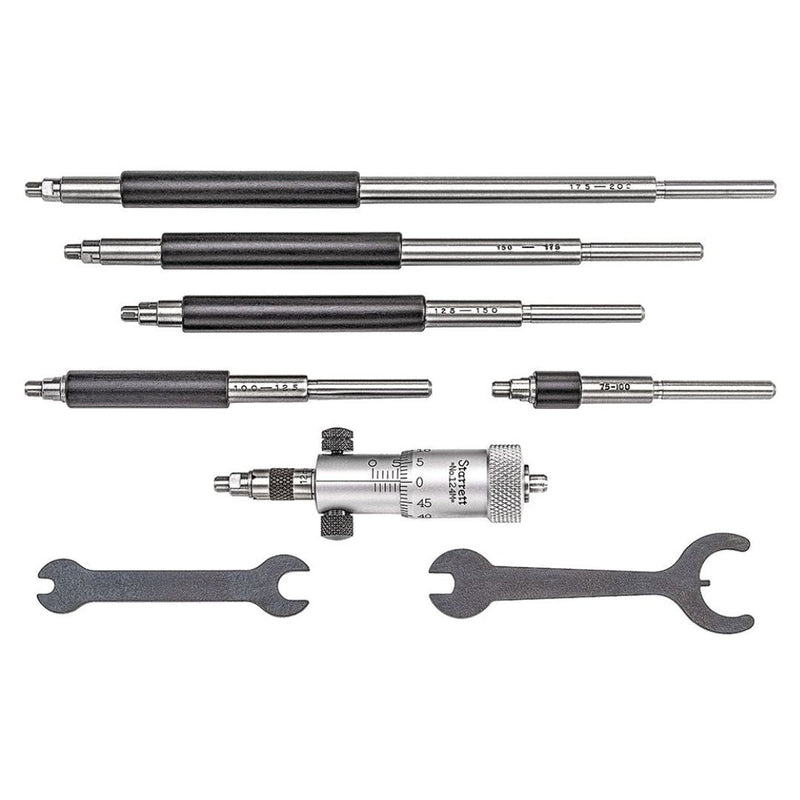

They are very useful for measuring internal diameters of cylinders and rings and measuring parallel surfaces. The desired range is obtained by assembling rods and spacer collars in the micrometer head.

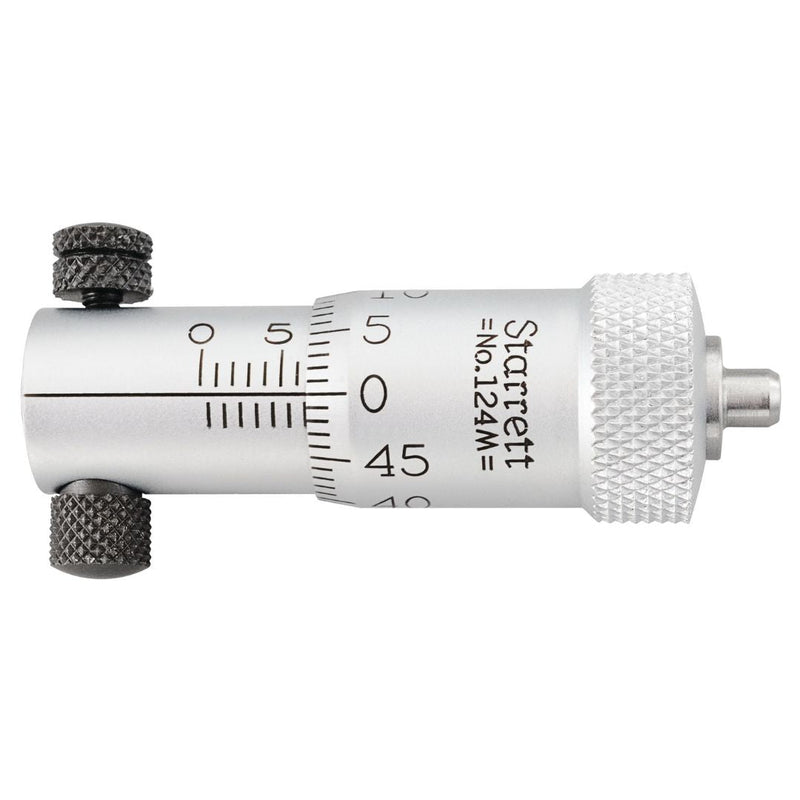

Measuring rods are provided with a shoulder which is accurately positioned in the micrometer head and locked into position. When assembling rods into the A and B heads, the reading line on the micrometer head must be aligned with the mark on each rod (except for the 50-75 mm (2-3") rods).
Rod diameters are approximately 6mm (1/4") on sizes A and B, and approximately 8.5mm (11/32") on size C.

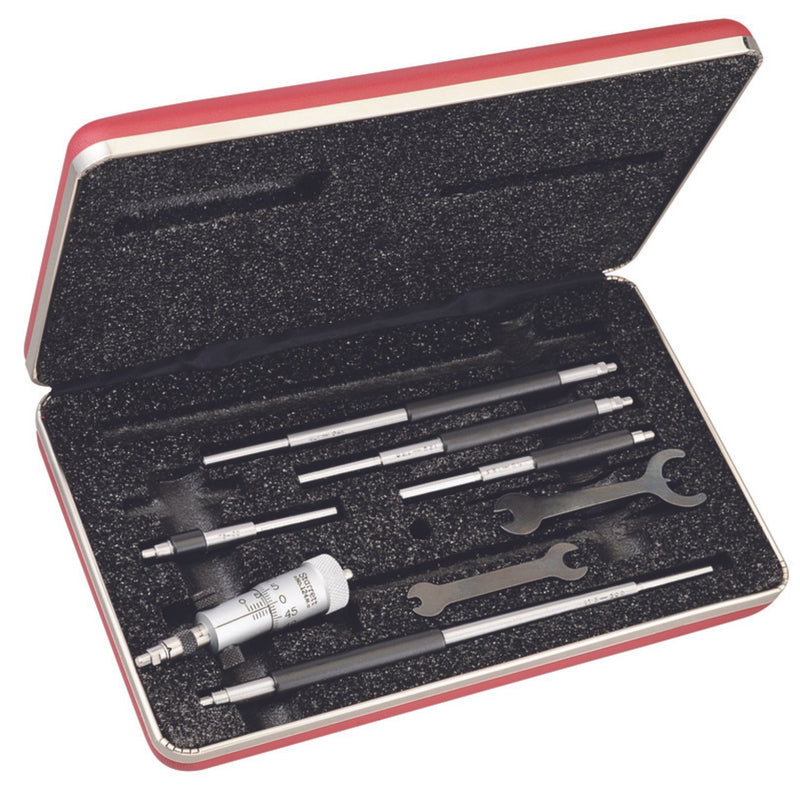

Each rod has an individual length adjustment for the anvil by means of special wrenches supplied. Range 50 to 200 mm, 0.01 mm graduation, 6 Measuring Rods with Case.
Characteristics
- Insulated bars marked with length
- Adjustable for length
- The dipsticks are solid
- Hardened and ground anvils
- Quick reading figures
- 6-1/2" (165mm) long handle is available (124H)
Specs
| Universal model | 124MAZ |
|---|---|
| Range (mm) | 50-200 mm |
| Accuracy (mm) | Lead accuracy +/-.003mm per 25mm |
| Type of box | Padded box |
| Maximum range (mm) | 200 mm |
| Minimum range (mm) | 50 mm |
| Graduations (mm) | 0.01 mm |
| Measuring rods (quantity) | 6 |
| Type of micrometer | Internal micrometer caliper |
| Starrett Model | 56141 |
Package specifications
| Unit Package Item Quantity | 8 |
|---|---|
| Unit Package Dimensions (in) | 1.4" x 8" x 5.1" |
| Unit package dimensions (mm) | 35.56 x 203.2 x 129.54 mm |
| Unit package weight (kg) | 0.5896696 kg |
| Unit weight of package (lbs) | 1.3 lbs |
