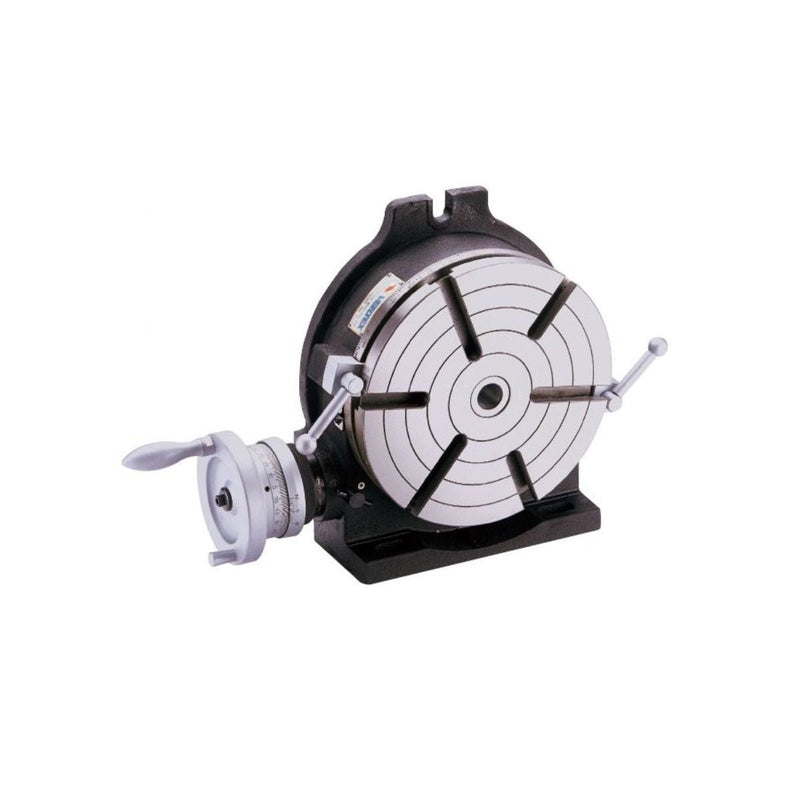

Horizontal and Vertical Divider Table 8", Vertex

Characteristics

• 10 second vernier reading.
• Made of high density meehanite with ground surfaces.
• Hardened and ground worm gear.
• Accuracy in 40 seconds.
• Adjustable dial on steering wheel.
• The Vernier plate allows direct reading in 5 seconds.

• The end of the spindle is applied with precision bearing, keeping cutting safe and stable.
• The worm is hardened and ground. The ratio is 90:1.
• Graduated a full 360°, so that a turn of the handle moves the table 4°. The microcollar is graduated in steps of 1'min.

• Using the key guide block, the center can be corrected quickly and accurately.
