Greenlee 18" Flexible Clamp Meter 600V 3000 AMP
by GREENLEE
SKU G08854
Original price
RD$ 0
Original price
RD$ 23,358.10
-
Original price
RD$ 23,358.10
Original price
Current price
RD$ 23,358.10
RD$ 23,358.10
-
RD$ 23,358.10
Current price
RD$ 23,358.10
Pickup at local or home
Home deliveries throughout the country.

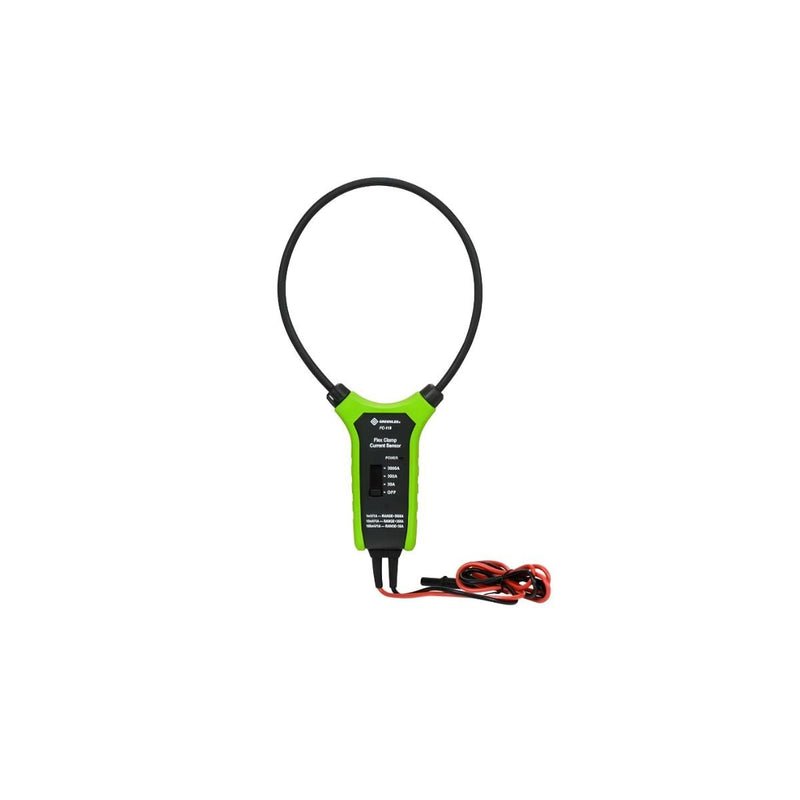

Current probe with 18" (457.2 mm) flexible clamp.
Characteristics
- Flex Clamp current probes extend AC measurement of existing meters up to 3000 A.
- Compatible with most meters that use universal banana plugs.
- Flexible coil adds accessibility - easily maneuver around cables in hard to reach areas and large enough to pass around larger conductors.

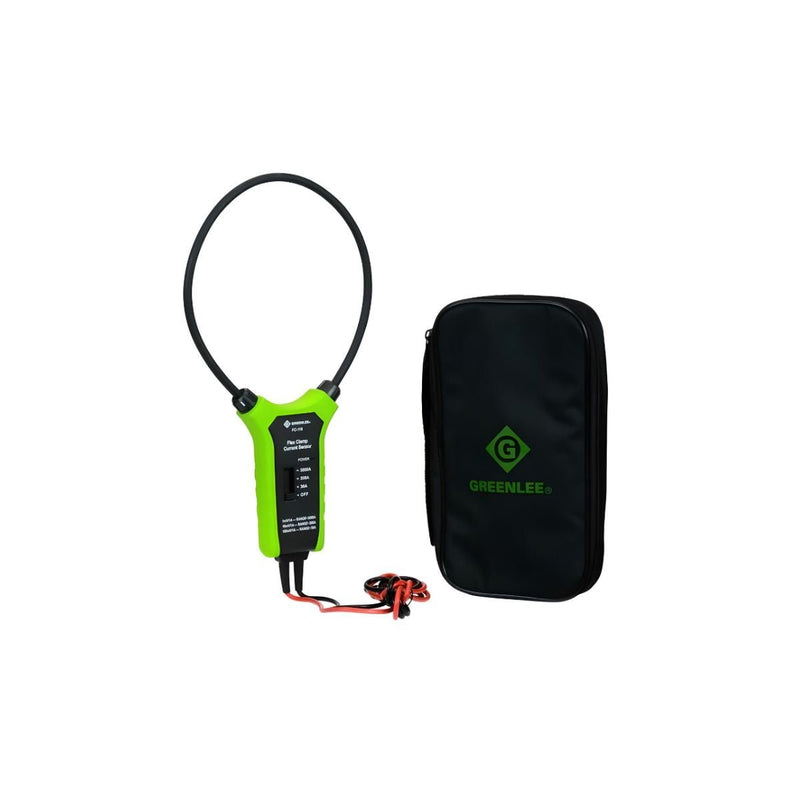

Includes
- 1 to 18 inch Flexible Clamp Current Probe with Attached Cables (FC-118).
- 1 - Soft carrying case.
- 3 - AAA batteries.
SPECS
| Universal model | FC-118 |
| Nominal voltage | 6V/60V/600V |
| Nominal capacity in amps | 30 A/300 A/3,000 A |
| Frequency classification | 20 - 30 kHz |
| Voltage accuracy | ±1.2% + 300 mV |
| Amperage Accuracy | ±3% + 5A |
| Screen | LCD |
| Operating temperature | 0 to 50 °C |
| Coil diameter | 18 in (45.7 cm) |
| Endurance | 60.0 MΩ |
| Input current | 80 ms, minimum: 3.0 A |
| Security Category Classification | CAT IV 600 V |
| Tip material | Rogowski coil |
| Greenlee Model | G08854 |
PACKAGE SPECIFICATIONS
| Unit Package Item Quantity | 3 |
| Unit package weight (lbs) | 1.2 lbs |
| Unit package weight (kg) | 0.544311 kg |
| Unit Package Dimensions (in) | 8" x 8" x 8" |
| Unit package dimensions (mm) | 203.2 x 203.2 x 203.2 mm |
