4-Jaw Self-Centering Lathe Chuck 10" Vertex

by VERTEX
SKU 7-850-1000
Sale Sale
RD$ 31,382.10
RD$ 31,382.10 - RD$ 31,382.10
RD$ 31,382.10
RD$ 29,813.00
RD$ 29,813.00 - RD$ 29,813.00
RD$ 29,813.00

Pickup at local or home

Home deliveries throughout the country.

Request for quotation

CHARACTERISTICS

  • 4-jaw self-centering lathe chuck.
  • High quality plain back lathe chuck.
  • Machined cast iron.
  • Reversible upper jaw.
  • Self-centering.

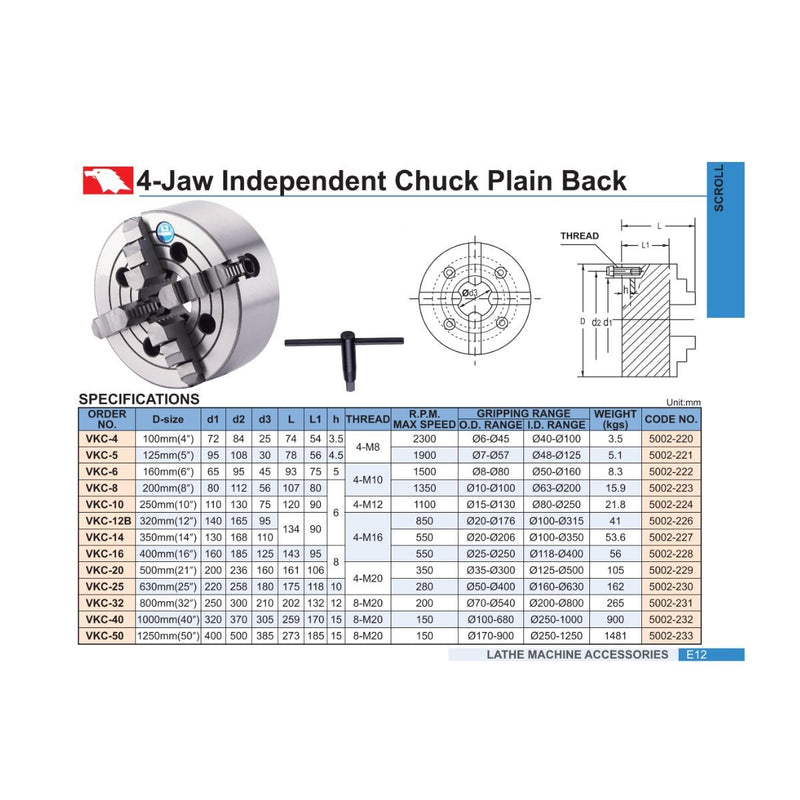

SPECS

Universal model VKC-10
Outer grip range 0.6" - 5" (15 - 130 mm)
Inner grip range 3" - 10" (80 - 250 mm)
D 4" (250 mm)
d1 110
d2 130
d3
 75
Long 120
L1 90
h 6
Edge 4-M12
Maximum speed (rpm) 1100 rpm
Vertex Model 7-850-1000

PACKAGE SPECIFICATIONS

Unit Package Item Quantity
 1
Unit package weight (lbs) 48 lbs
Unit package weight (kg) 21.7724 kg
