Dial Comparator Clock 0.0001MM Starrett
by STARRETT
SKU 64212
Sale
Original price
RD$ 32,562.10
Original price
RD$ 32,562.10
-
Original price
RD$ 32,562.10
Original price
RD$ 32,562.10
Current price
RD$ 30,934.00
RD$ 30,934.00
-
RD$ 30,934.00
Current price
RD$ 30,934.00
Pickup at local or home
Home deliveries throughout the country.

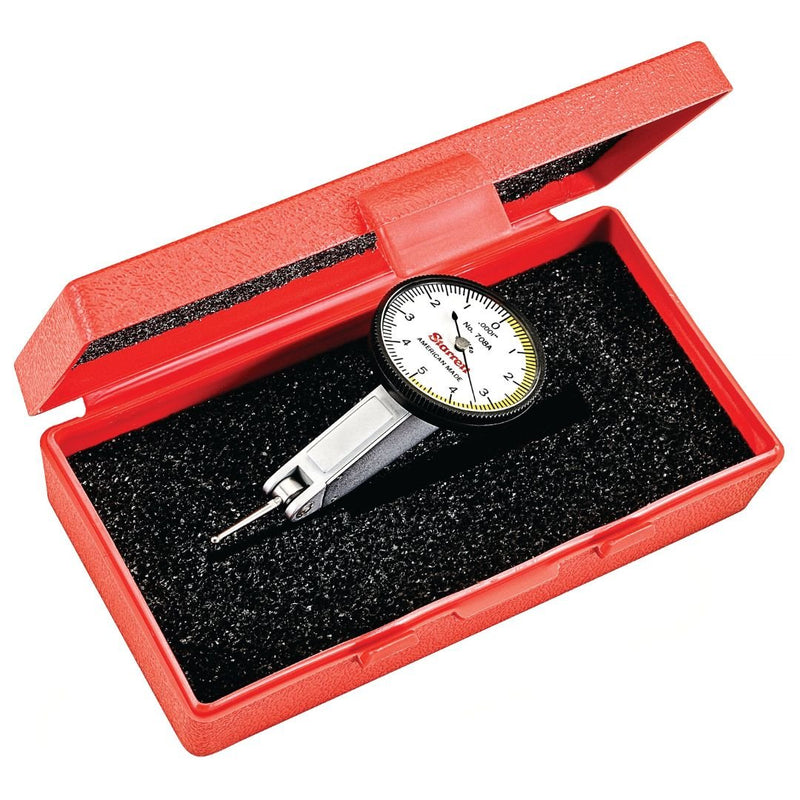

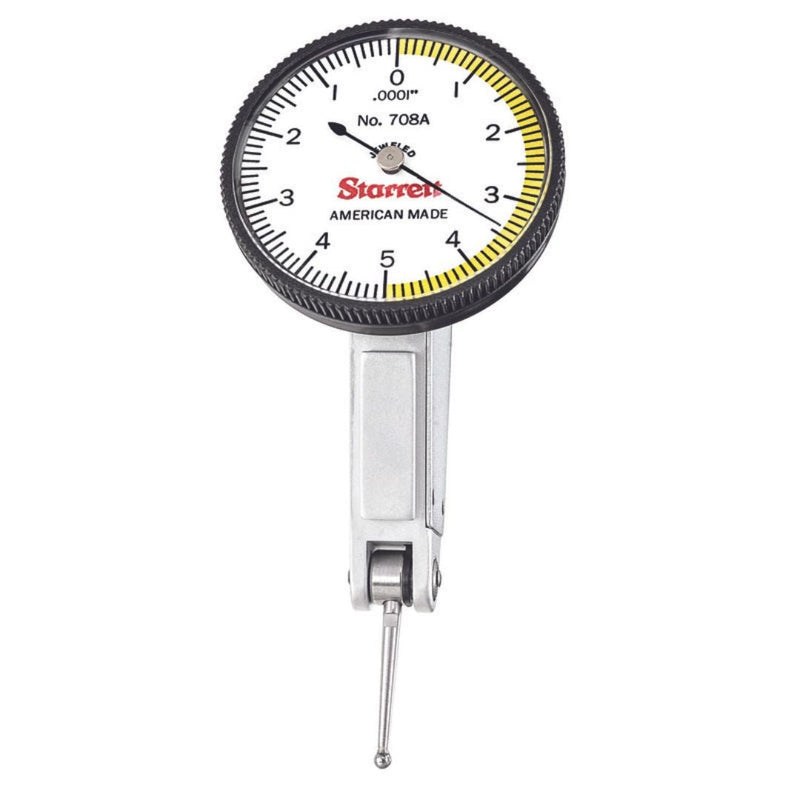

The Starrett 708 Dovetail Mount Dial Test Indicator offers an easy-to-read angled head and the flexibility of three dovetail mounts. White dial, .010" range, .0001" grade, attachments not included.
Characteristics
- These precision test indicators offer an easy-to-read angled head and the flexibility of three dovetail holders
- Three dovetail positioning brackets work with existing test gauge accessories
- Precision gear-driven design with smooth, jeweled movement
- The contact point is automatically reversed, always maintaining clockwise hand rotation
- Contacts are friction adjustable and replaceable
- Revolution count hand makes reading easier
- Meet or exceed ISO accuracy specifications
Specifications
| Range (in) | 0.010" |
|---|---|
| Contact Tip Ball Diameter (in) | 078" (2mm) |
| Contact Point Length (in) | 13/16" |
| Contact point length (mm) | 20mm |
| dial color | White |
| Dial reading | 0-5-0 |
| Attached files | No attachments |
| Max. Range (in) | 0.01 |
| Minimum range (in) | 0 |
| Contact ball material | Carbide |
| Diameter of contact tip ball (mm) | 2mm (.078") |
| Graduations (in) | 0. 0001" |
| UNIT PACKAGE HEIGHT (IN) | 1.4 |
| HEIGHT OF UNIT PACKAGE (MM) | 58.42 |
| UNIT PACKAGE ITEM QUANTITY | 1 |
| UNIT PACKAGE LENGTH (IN) | 5.5 |
| UNIT PACKAGE LENGTH (MM) | 193.04 |
| WEIGHT OF THE UNIT PACKAGE (KG) | 0.4989512 |
| UNIT PACKAGE WEIGHT (POUNDS) | 0.2 |
| UNIT PACKAGE WIDTH (IN) | 3 |
| WIDTH OF UNIT PACKAGE (MM) | 134.62 |
